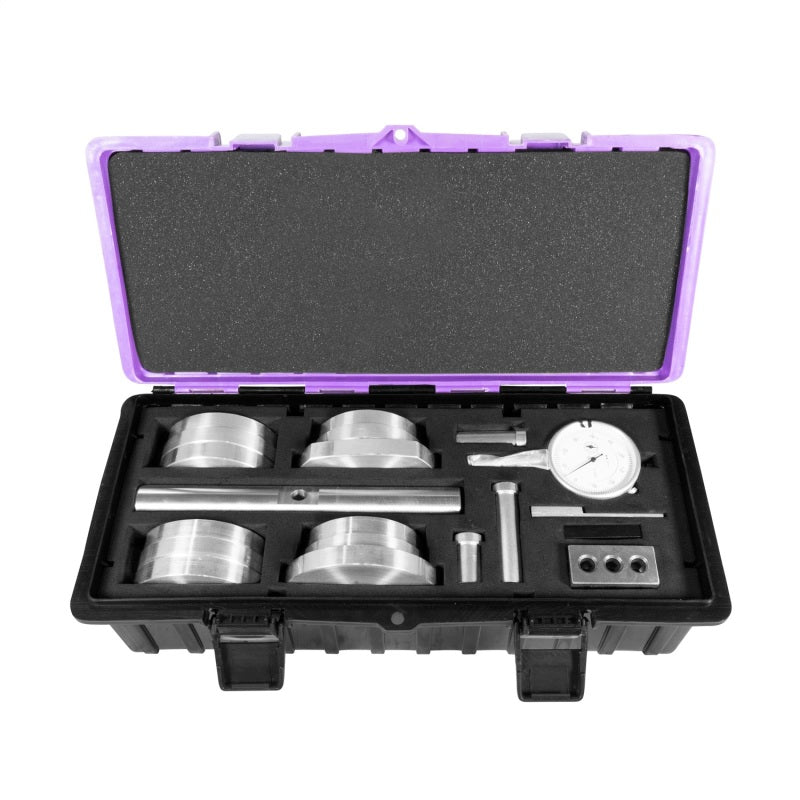

Yukon Deluxe Pinion Depth Setting Tool/Gauge

Yukon Gear & Axle
YUKYT D02
In stock
Tools
$694.89
The Yukon Deluxe Pinion Depth Setting Tool/Gauge Kit is a precision setup tool designed for accurate...
$694.89
customers are viewing this product
Yukon Deluxe Pinion Depth Setting Tool/Gauge
Description

The Yukon Deluxe Pinion Depth Setting Tool/Gauge Kit is a precision setup tool designed for accurate pinion depth measurement during differential installation. Whether you're rebuilding a rear end or installing new gears, this tool ensures proper alignment and optimal gear mesh for long-term performance.

Engineered for professional use, the Yukon pinion depth tool is compatible with a wide range of axle types and includes all necessary gauges and adapters for a clean, repeatable setup. It’s ideal for shops, builders, and serious DIYers who want to eliminate guesswork and avoid premature gear wear.

This kit does not require calibration and is built to deliver consistent results across multiple applications. It’s a must-have for anyone installing ring and pinion gear sets with precision.


Features and Benefits

  • Measures pinion depth with high accuracy

  • Compatible with multiple axle types

  • Eliminates guesswork during gear setup

  • Durable construction for repeated use

  • Ideal for professional and DIY differential builders


Specifications

Specification Details
Part Number yukYT D02
Tool Type Pinion Depth Setting Gauge Kit
Compatibility Multi-axle applications
Calibration Required No
Prop 65 Warning Not Applicable
Package Quantity EA


Installation Instructions


This Part Fits:



Year Make Model Submodel
2021 Jeep Wrangler 80th Anniversary
2021 Jeep Wrangler Freedom
2021 Jeep Wrangler Islander
2018-2022 Jeep Wrangler Rubicon
2018-2022 Jeep Wrangler Sport
2018-2022 Jeep Wrangler Sport S
2021 Jeep Wrangler Unlimited 80th Anniversary
2021 Jeep Wrangler Unlimited Freedom
2021 Jeep Wrangler Unlimited High Altitude
2021-2022 Jeep Wrangler Unlimited High Altitude 4xe
2021 Jeep Wrangler Unlimited Islander
2019 Jeep Wrangler Unlimited Moab
2018-2022 Jeep Wrangler Unlimited Rubicon
2021-2022 Jeep Wrangler Unlimited Rubicon 392
2021-2022 Jeep Wrangler Unlimited Rubicon 4xe
2018-2022 Jeep Wrangler Unlimited Sahara
2021-2022 Jeep Wrangler Unlimited Sahara 4xe
2021-2022 Jeep Wrangler Unlimited Sahara Altitude
2018-2022 Jeep Wrangler Unlimited Sport
2021-2022 Jeep Wrangler Unlimited Sport Altitude
2018-2022 Jeep Wrangler Unlimited Sport S
2021-2022 Jeep Wrangler Unlimited Willys
2021-2022 Jeep Wrangler Unlimited Willys Sport
2021-2022 Jeep Wrangler Willys
2021-2022 Jeep Wrangler Willys Sport

REVIEWS

TS

This tool made setting up my ring and pinion a breeze. Accurate readings and easy to use. A must-have for gear installs.

Tom S.

Denver, CO

★★★★★
AJ

Used this on a Dana 60 setup and it worked flawlessly. Saved me hours of trial and error. Highly recommend for any serious builder.

Alex J.

Reno, NV

★★★★★
