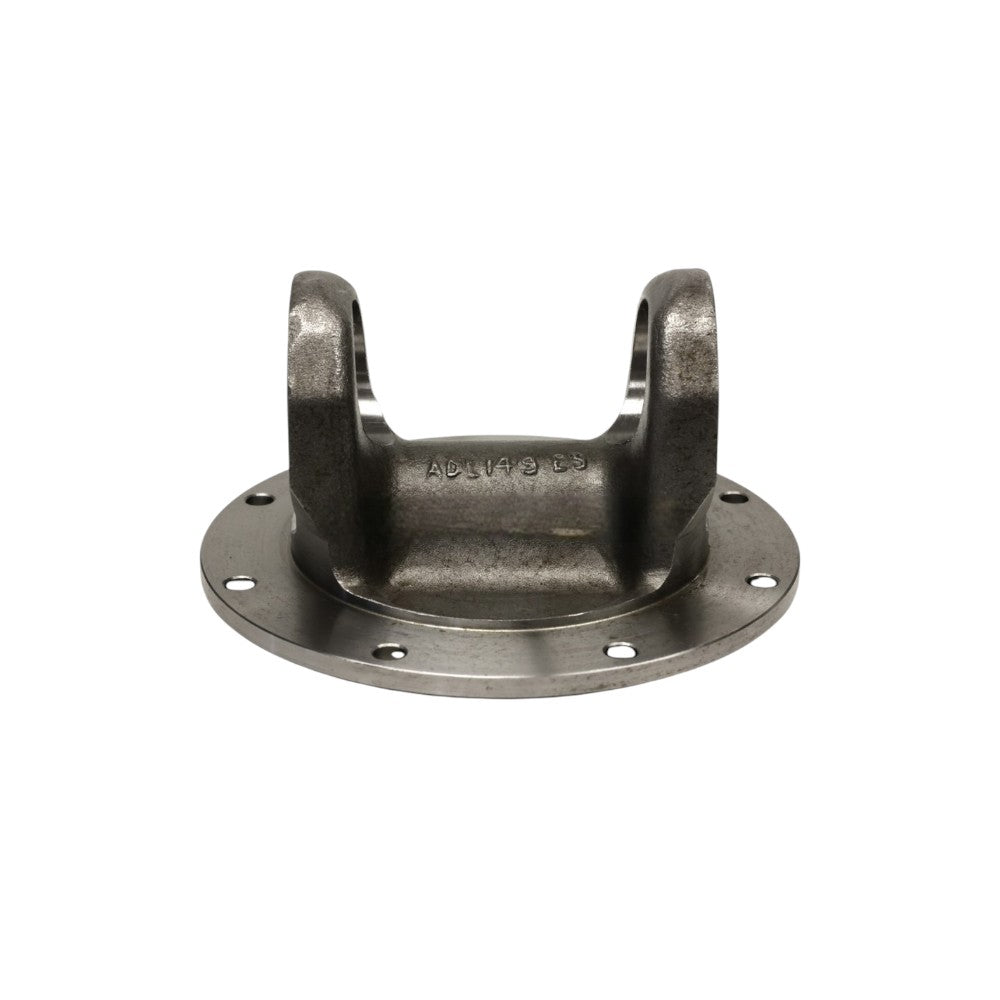

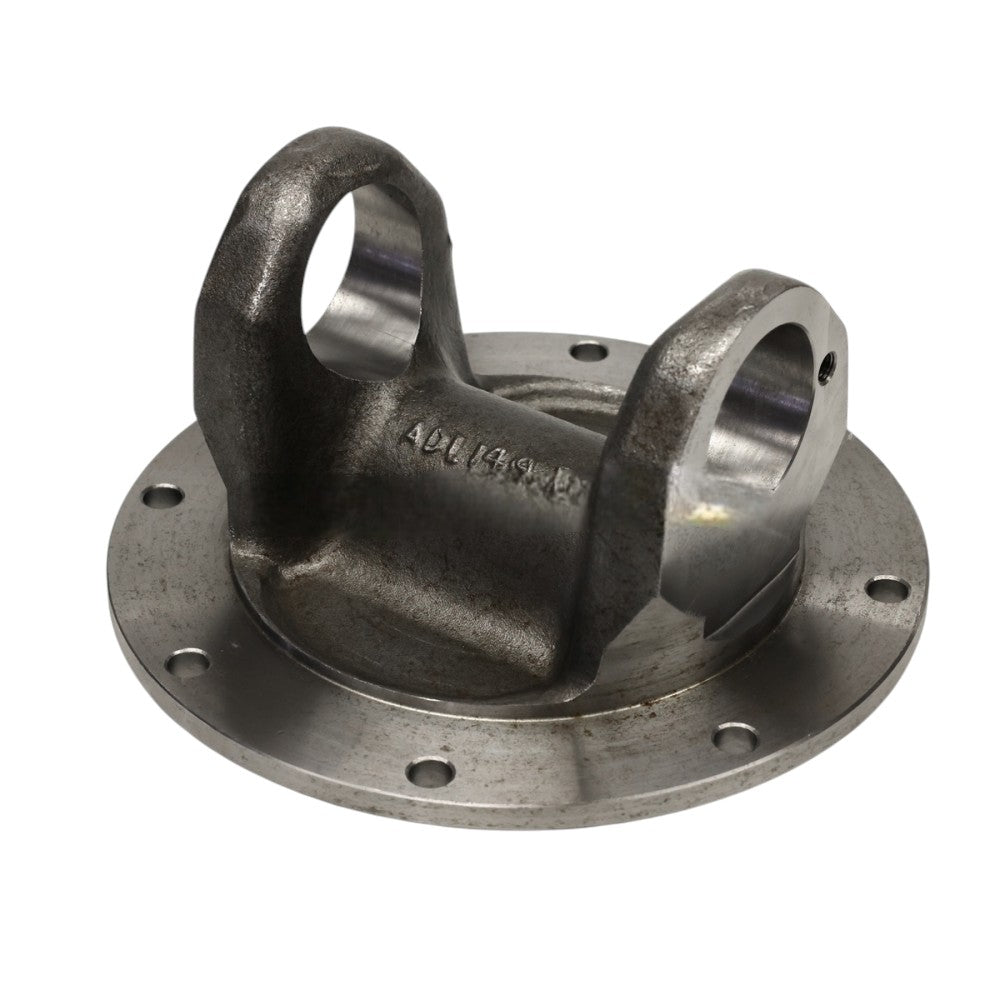

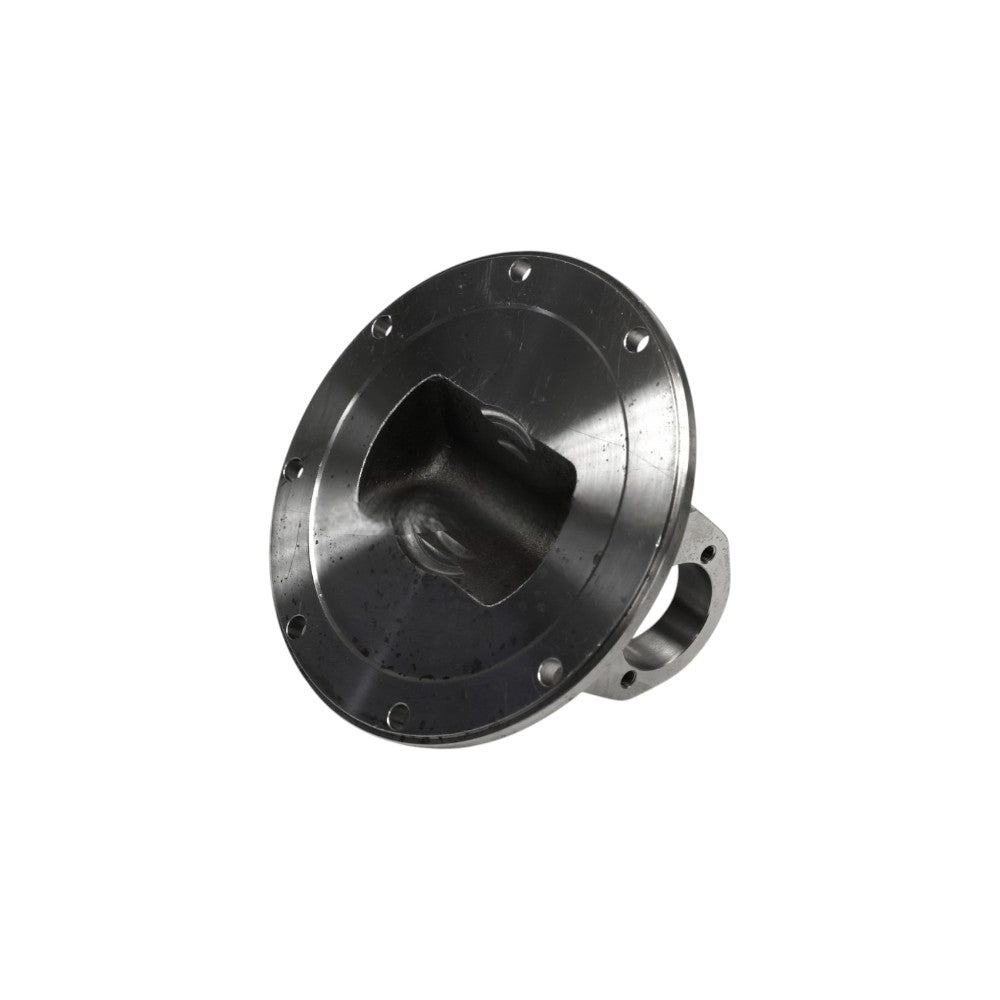

5-2-629 Driveshaft Flange Yoke 1610 Series with 8x0.375" Holes 7.750" Male Pilot
Technical Data
When it comes to heavy-duty driveline performance, the Driveshaft Flange Yoke 1610 Series 5-2-629 delivers the reliability you need. Built for large trucks, buses, and industrial equipment, this flange yoke ensures a secure connection for 1610 series U-joints, reducing downtime and keeping your vehicle moving without hassle.
Crafted from high-strength forged steel, this flange yoke is designed to handle high torque loads while maintaining durability in even the harshest environments. The precision-machined 7.750" male pilot and 8 x 0.375" bolt holes guarantee a tight fit, helping minimize vibration and wear on your driveline system.
Whether you’re tackling long hauls, construction sites, or heavy agricultural work, the 5-2-629 Driveshaft Flange Yoke 1610 Series provides the strength, precision, and long-lasting performance American drivers count on. This isn’t just a replacement part — it’s an upgrade in reliability.
Features and Benefits
-
Forged Steel Construction – Ensures maximum strength and long-lasting durability in high-torque applications.
-
Precision Machining – Promotes smoother rotation and reduces vibration for extended driveline life.
-
Corrosion-Resistant Finish – Protects against rust and harsh working conditions.
-
Exact Fit for 1610 Series U-Joints – Designed for seamless installation in heavy-duty vehicles and equipment.
-
Versatile Applications – Compatible with trucks, buses, construction, and agricultural machinery.

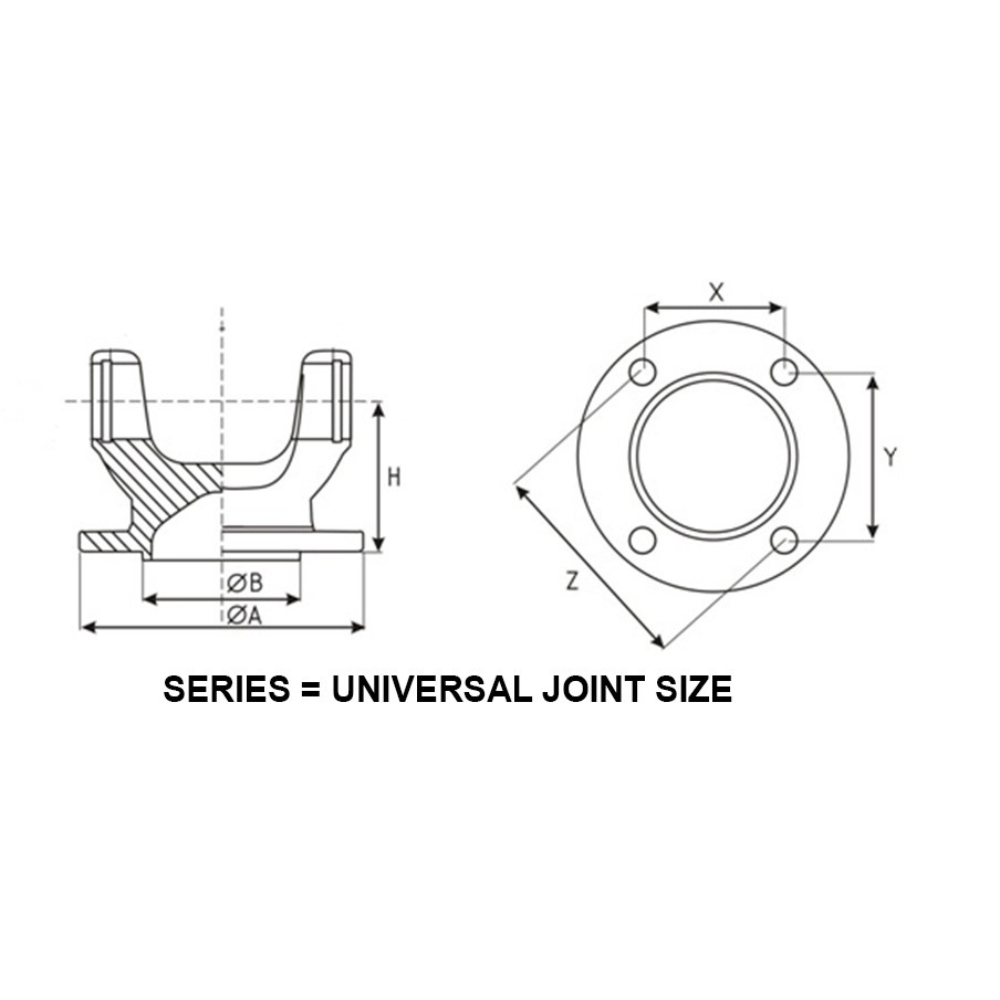

Technical Specifications
| Specification | Detail |
|---|---|
| Part Number (MPN) | 5-2-629 |
| Brand | Aftermarket |
| Series | 1610 (1.875 in x 5.312 in) |
| Flange Diameter (OD) | 8.000 in (203.2 mm) |
| Male Pilot Diameter | 7.750 in (196.85 mm) |
| Centerline of Joint to Flange Face | 2.750 in (69.85 mm) |
| Bolt Circle Diameter | 7.250 in (184.15 mm) |
| Bolt Hole Count | 8 |
| Bolt Hole Diameter | 0.375 in (9.5 mm) |
| Material | Forged Steel |
| Outside Yoke Dimension | 5.312 in (135 mm) |
| Yoke Bearing Dimension | 1.875 in (47.62 mm) |
| Joint Angle | 22 Degrees |
| Warranty | 1 Year |
| Interchange Part Numbers | SPI-5-2-629, SPI-5-2-629B |
| Compatible Equipment | Automotive, Industrial, SUV, Truck |
What’s Included
-
1x Driveshaft Flange Yoke 1610 Series – 5-2-629
-
Warranty Information (1 Year Coverage)
-
Original Packaging
REVIEWS
I run a fleet of dump trucks in Dallas, and this flange yoke was a lifesaver. Perfect fit, solid build, and no issues since installation.
John D.
Dallas, TX
Needed a heavy-duty replacement for my farm truck in Ohio. This 1610 series yoke is strong, precise, and built to last. Highly recommend!
Mark R.
Cleveland, OH
Specifications
Fitment Data
• Engineered for precision compatibility with high-performance builds.
• Tested under extreme mechanical stress for guaranteed structural integrity.
Use the Riot Vehicle Finder to verify exact sub-model compatibility.
