3-21-2024 CV Flange Transfer Case 1350 Series fits 1999-2014 Dodge Ram 2500 Ford
Technical Data

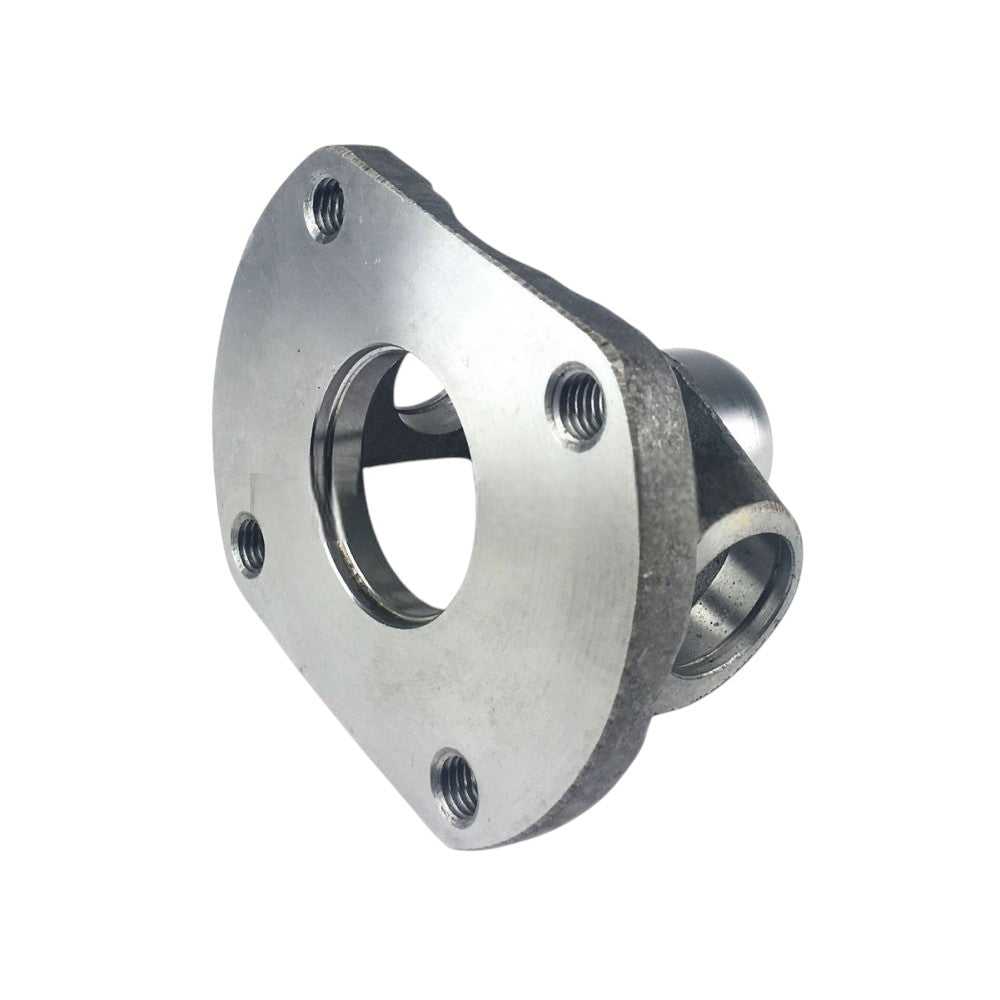

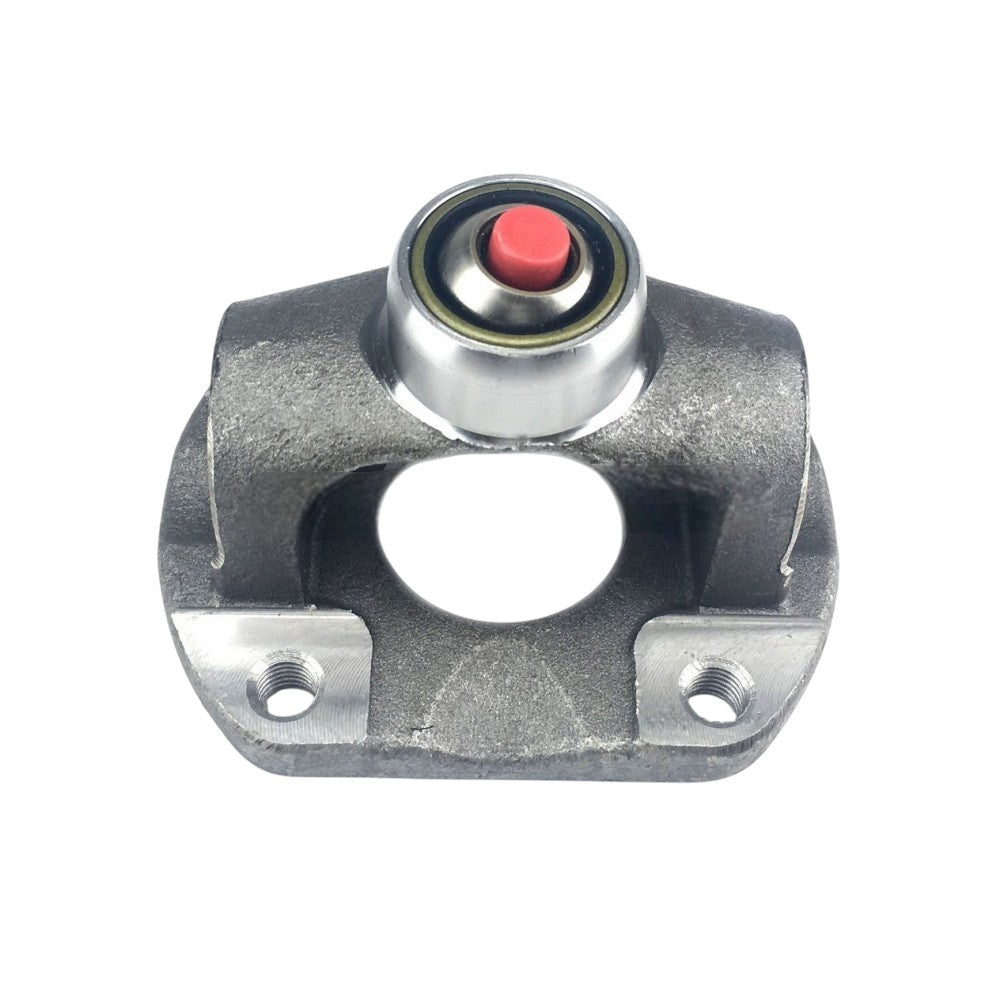

The 3-21-2024 CV Flange Transfer Case is a rugged driveline component engineered for 1350 series U-joints, ensuring durability and performance in Dodge Ram (1999–2010) and Ford Super Duty trucks (1999–2004). Designed for CV (constant velocity) driveline systems, this flange guarantees a precise fit and reliable connection between the driveshaft and transfer case. Built from forged, high-strength steel with a corrosion-resistant finish, it provides lasting performance under heavy load, off-road, or towing conditions.
Upgrade your driveline with the 3-21-2024 CV Flange Transfer Case 1350 Series – precision-built for Dodge and Ford trucks to handle the toughest towing and off-road demands.
Features and Benefits
-
Forged construction – built for maximum strength and durability
-
Precision-machined – ensures smooth alignment and reduces vibration
-
Corrosion-resistant finish – protects against rust and wear
-
Heavy-duty performance – ideal for off-road, towing, and high-load applications
-
OEM replacement fit – compatible with Dodge and Ford driveline systems

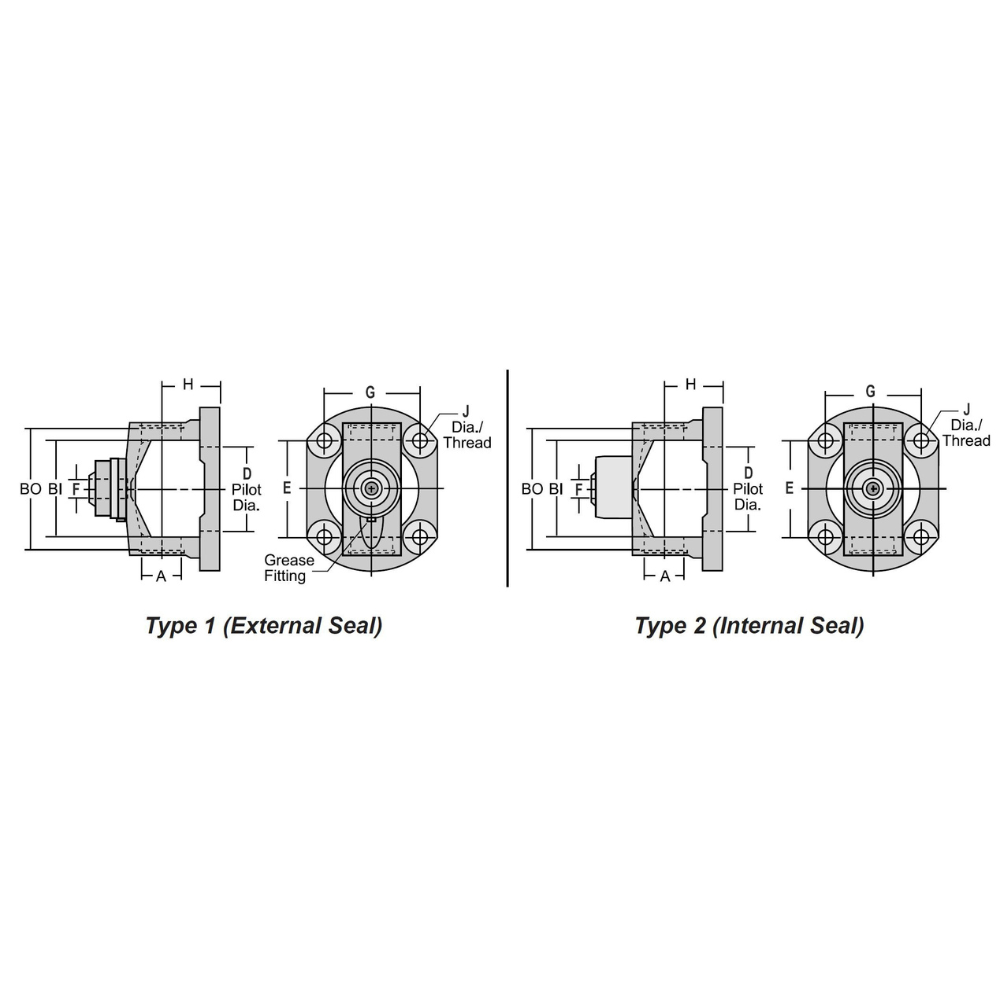

Technical Specifications
| Specification | Detail |
|---|---|
| Series | 1350 (1.188 in x 3.625 in) |
| Flange Diameter (Bolt Circle) | 4.250 in (107.95 mm) |
| Pilot Diameter (D) | 2 in (50.8 mm) |
| Hole Pattern Width (E) | 3 in (76.2 mm) |
| Hole Pattern Height (G) | 3 in (76.2 mm) |
| Bolt Hole Diameter (J) | M12 x 1.75 in (12 mm x 44.45 mm) |
| Centerline of Joint to End of Spline (H) | 1.625 in (41.275 mm) |
| Ball Stud Size (F) | 0.5 in (12.7 mm) |
| Universal Joint Bearing Cap Diameter | 1.187 in (30.1 mm) |
| Placement on Vehicle | Rear |
| Warranty | 1 Year |
Vehicle Compatibility
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 1994-2001 | Dodge | Ram 1500 | All Trims | 3.9L / 5.2L / 5.9L |
| 1994-2002 | Dodge | Ram 2500 | All Trims | 5.2L / 5.9L / 8.0L / 5.9L Diesel |
| 1994-2002 | Dodge | Ram 3500 | All Trims | 5.9L / 8.0L / 5.9L Diesel |
| 2000-2005 | Ford | Excursion | All Trims | 5.4L / 6.8L / 7.3L Diesel / 6.0L Diesel |
| 1999-2004 | Ford | F-250 Super Duty | All Trims | 5.4L / 6.8L / 7.3L Diesel / 6.0L Diesel |
| 1999-2004 | Ford | F-350 Super Duty | All Trims | 5.4L / 6.8L / 7.3L Diesel / 6.0L Diesel |
| 1999-2004 | Ford | F-450 Super Duty | All Trims | 6.8L / 7.3L Diesel / 6.0L Diesel |
| 1999-2004 | Ford | F-550 Super Duty | All Trims | 6.8L / 7.3L Diesel / 6.0L Diesel |
What's Included
-
1 × 3-21-2024 CV Flange Transfer Case (1350 Series)
-
1-Year Warranty
REVIEWS
Perfect fit for my 2003 Ram 2500. Installed easily and no more driveline vibration. Great quality replacement part!
John M.
Dallas, TX
Used this on my F-350 Super Duty, and it has been holding up great under heavy towing. Definitely recommend this part for reliability.
Ryan S.
Boise, ID
