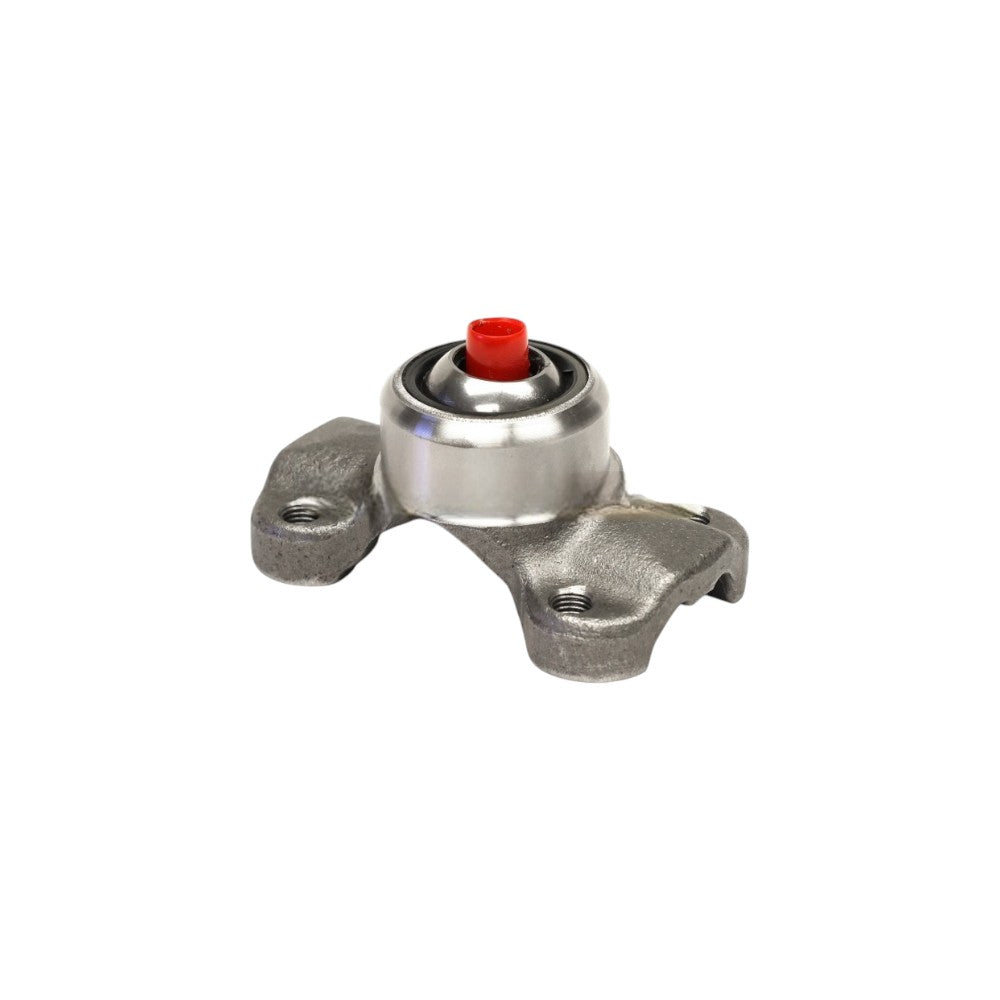

211544X CV Centering Yoke Double Cardan 1310 Series fits 1962-2004 Jeep Cherokee
Technical Data
The 211544X CV Centering Yoke is a high-quality double cardan component engineered for 1310 series driveshafts. Designed as a non-greasable, maintenance-free solution, this centering yoke ensures precise alignment and dependable performance in constant velocity joints. Built from rugged materials, it is a direct-fit replacement for a wide range of Jeep, Dodge, Chevrolet, Ford, GMC, and Plymouth vehicles from 1962–2004. Whether for daily driving, off-road adventures, or utility use, this yoke provides long-lasting durability and reliable performance under heavy torque loads.
Hookable Description
Upgrade your driveshaft with the 211544X CV Centering Yoke — built tough for Jeep, Dodge, Chevy, Ford, GMC, and Plymouth applications from 1962–2004. Maintenance-free, non-greasable, and ready for rugged performance.
Features and Benefits
-
Non-Greasable Design – Maintenance-free with sealed factory lubrication
-
Double Cardan Alignment – Ensures smooth rotation and reduces driveline vibrations
-
1310 Series Fitment – Standard compatibility across multiple 4x4 and utility vehicles
-
Heavy-Duty Durability – Built for off-road, towing, and high-torque applications
-
Reliable Replacement – Direct-fit solution for worn or damaged OEM centering yokes
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 211544X |
| Series | 1310 (1.062 in x 3.219 in) |
| Design | Non-Greasable, Double Cardan |
| Bolt Circle Diameter | 3.218 in (81.73 mm) |
| Bolt Hole Distance A | 1.50 in (38.1 mm) |
| Bolt Hole Distance B | 2.343 in (59.51 mm) |
| Bolt Hole Diameter | 0.312 in (7.92 mm) |
| Center to Flange Dimension | 1.656 in (42.06 mm) |
| Fits Ball Stud Size | 0.500 in (12.7 mm) |
| Warranty | 1 Year |
Vehicle Compatibility
| Year Range | Make | Model | Trim / Type |
|---|---|---|---|
| 1962-2004 | Jeep | Cherokee | All trims |
| 1962-1986 | Jeep | CJ5, CJ7 | All trims |
| 1962-1988 | Jeep | J10, J20, Wagoneer, Scrambler, Comanche | All trims |
| 1974-2001 | Jeep | Cherokee, Grand Cherokee | Select models |
| 1966-1996 | Ford | Bronco, F-100, F-250, Explorer, Ranger | All trims |
| 1967-1994 | Chevrolet | K10, K20, K3500, K10 Suburban, Blazer | All trims |
| 1967-1994 | GMC | K15/K1500, Jimmy | All trims |
| 1974-1993 | Dodge | Ramcharger, W100, W200, W300, Dakota | All trims |
| 1974-1981 | Plymouth | Trailduster | All trims |
| 1962-1977 | Checker | Aerobus | All trims |
What's Included
-
1x 211544X CV Centering Yoke (Double Cardan, 1310 Series)
-
Manufacturer 1-Year Warranty
REVIEWS
Perfect fit for my 1985 Jeep CJ7. Driveline vibrations are completely gone. Solid and well-built part.
John D.
Denver, CO
Installed this on my Ford Bronco. Heavy-duty quality and no more greasing needed. Runs smooth.
Mark S.
Houston, TX
Great replacement part for my Chevy K20. Only downside is it didn’t include bolts, but performance is excellent.
Robert L.
Phoenix, AZ
High-quality yoke, exactly as described. Installed on my Dodge W200 and it works flawlessly.
Tom G.
Boise, ID
Specifications
Fitment Data
• Engineered for precision compatibility with high-performance builds.
• Tested under extreme mechanical stress for guaranteed structural integrity.
Use the Riot Vehicle Finder to verify exact sub-model compatibility.
