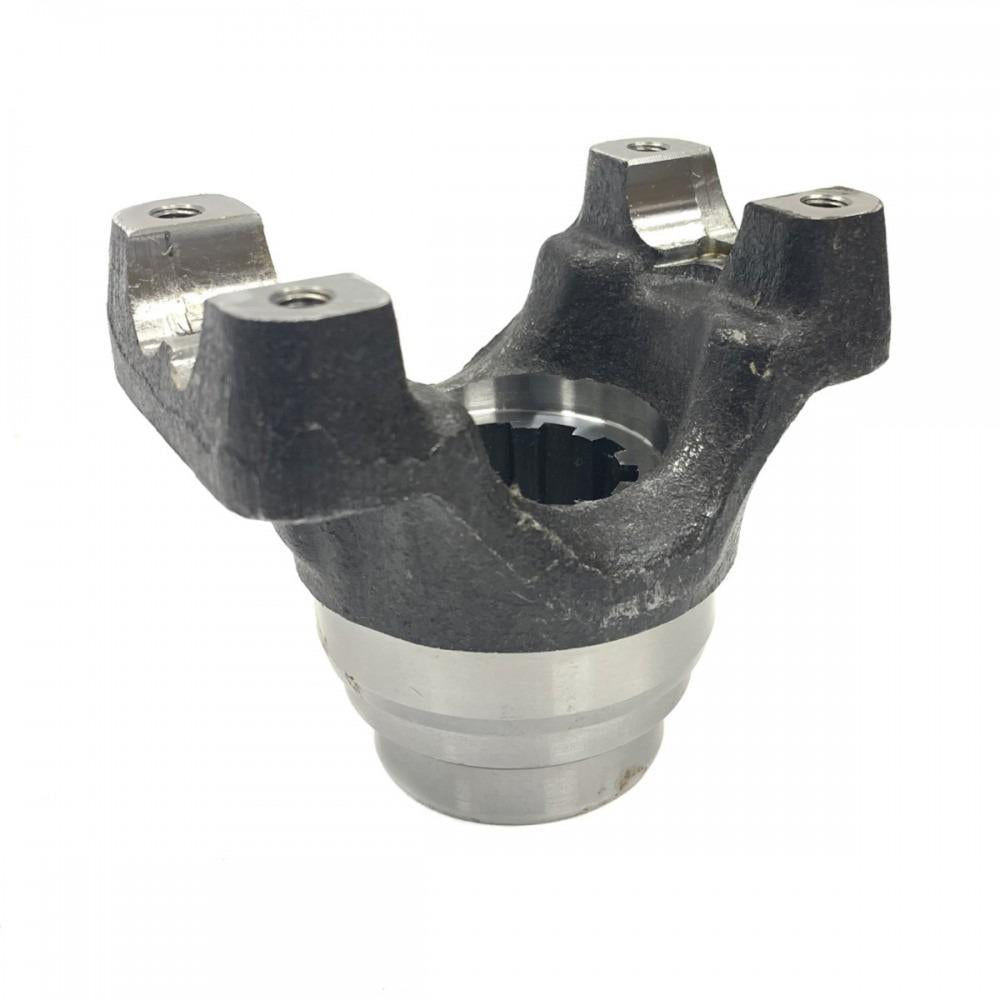

2-4-2671-1 Driveshaft End Yoke Splined Bore 1310 Series 1.375 in Diameter x 10 Splines
Technical Data
The 2-4-2671-1 Driveshaft End Yoke is engineered for strength, precision, and long-lasting reliability in driveline applications. Designed for the 1310 Series, it features a 1.375-inch diameter with 10 splines and a splined bore for a secure and efficient connection. Built from high-strength materials, this end yoke ensures excellent torque transfer, minimal vibration, and enhanced durability under demanding conditions. Perfect for automotive, agricultural, and industrial applications, it provides a dependable solution for replacements, upgrades, and custom builds.
Upgrade your driveline with the 2-4-2671-1 End Yoke — precision-machined for 1310 Series performance, built tough for lasting reliability.
Features and Benefits
-
Precision-machined 1.375" diameter with 10 splines for a secure fit
-
High-strength steel construction for superior durability
-
Designed for 1310 Series driveline applications
-
Optimized torque transmission with reduced vibration
-
Corrosion-resistant finish for longer service life
-
Easy installation with OEM-level fit and performance
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 2-4-2671-1 |
| Series | 1310 (1.062 in x 3.219 in) |
| Bore Type | Splined |
| Number of Splines | 10 |
| Major Diameter | 1.375 in (34.925 mm) |
| Hub Diameter (R) | 1.750 in (44.45 mm) |
| Center Line to End Hub (S) | 3.219 in (81.763 mm) |
| Length Thru Hole (Q) | 1.750 in (44.45 mm) |
| Outside Yoke Diameter | 3.219 in (81.8 mm) |
| Joint Angle | 21° |
| Yoke Style | BS |
| Material | High-strength steel |
| Warranty | 1 Year |
Vehicle Compatibility
| Compatible Brands | Applications |
|---|---|
| Neapco, Spicer | Automotive, Truck, SUV, Agricultural, Industrial |
| Driveline Systems | Fits 1310 Series driveline applications with 1.375" diameter, 10-spline end yoke |
What's Included
-
1 × 2-4-2671-1 Driveshaft End Yoke
REVIEWS
Installed on my driveline with zero issues. Fit was exact, and performance is excellent.
John D.
Dallas, TX
Durable construction, handles torque really well. Highly recommend for replacements.
Mark S.
Phoenix, AZ
Specifications
Fitment Data
• Engineered for precision compatibility with high-performance builds.
• Tested under extreme mechanical stress for guaranteed structural integrity.
Use the Riot Vehicle Finder to verify exact sub-model compatibility.
